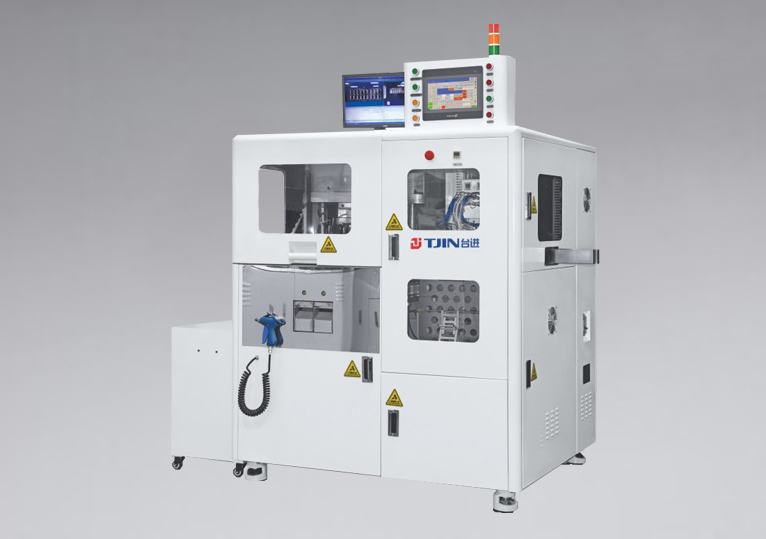

IC Automatic Trim & Form system
Fully automatic cam synchronous high-speed IC Automatic Trim & Form system singulated system
Main Features
Equipment function: product cutting, bending, separation, collection, etc. after plastic packaging;
Cutting speed: 120-180 strokes per minute (SPM: 120-180)
Applicable packaging: SOT/SOD/TSOT/SOP/SSP/TSSOP/MSOP and other series;
Punching power: servo motor upper power -3~5T;
Control system: PLC (Omron)
Operating system: touch screen+operation buttons, displaying UPH/SPM punching count function;
Detection system: dual mirror CCD image detection for incoming and outgoing materials;
Feeding mechanism: rotating double clip feeding;
Receiving mechanism: Material box receiving (bulk)
Safety protection system: The equipment is equipped with leakage protection devices, emergency stop button devices, and all main protective doors are equipped with SENSOR protection devices. After the protective doors are opened, the system should react to a certain extent to protect personal safety;
Optional 1: CCD visual detection device;
Option 2: MES system networking function;
Advantage
2. Customized according to needs, with strong wear resistance, long service life, guaranteed quality, and worry free after-sales service.
